Picture / Multi-Media HOP
Elevate Your Building with Advanced Hall Outside Position Displays
The Zhuye Picture/Multi-Media HOP (Hall Outside Position Display) is a state-of-the-art solution designed to enhance the elevator experience in modern buildings. Offering superior clarity and dynamic content capabilities, our HOP displays provide crucial real-time elevator status, floor indications, and engaging multimedia information to passengers awaiting elevator service. Available in versatile sizes including 7-inch, 10.4-inch, and 12.1-inch.
Key Advantages
- Dynamic Information Delivery: Beyond basic floor numbers, display time, date, week, and customizable video content.
- Enhanced Safety & Communication: Instantly convey alarm notifications such as fire, overload, and no smoking alerts.
- Flexible Integration: Supports RSL, CAN, and RS485 communication protocols for broad compatibility.
- Modern Aesthetic: Sleek design with high-resolution screens that complement contemporary building interiors.
- Customization Options: Language switching and interface style switching to match specific project requirements.

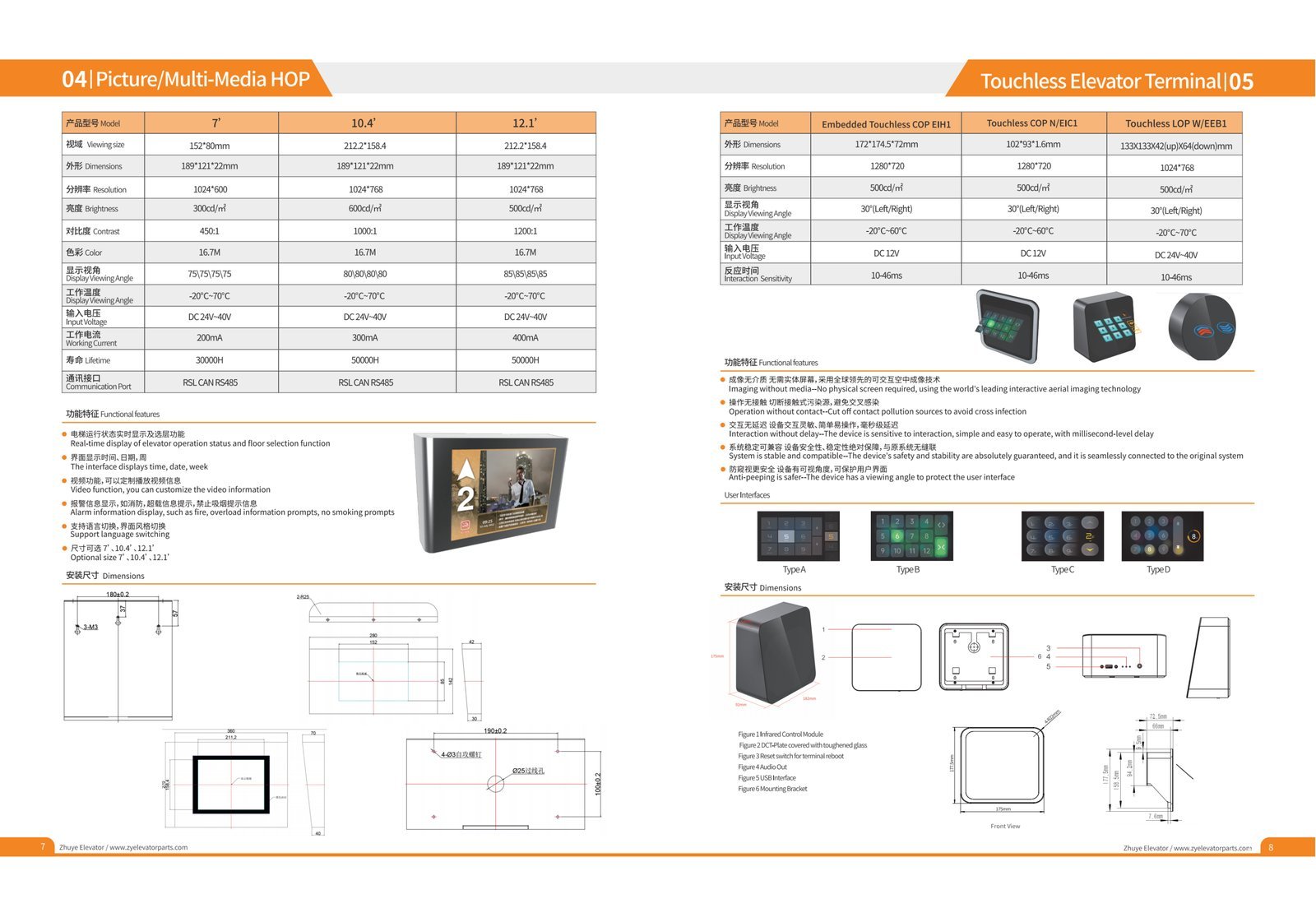

Technical Specifications
Three screen sizes to suit every installation environment and architectural preference.
| Feature | 7″ Model | 10.4″ Model | 12.1″ Model |
|---|---|---|---|
| Input Voltage | DC 24V~40V | DC 24V~40V | DC 24V~40V |
| Display Viewing Angle | 75/75/75/75 | 80/80/80/80 | 85/85/85/85 |
| Color | 16.7M | 16.7M | 16.7M |
| Contrast | 450:1 | 1000:1 | 1200:1 |
| Working Current | 200mA | 300mA | 400mA |
| Lifetime | 30,000H | 50,000H | 50,000H |
| Brightness | 300 cd/m² | 600 cd/m² | 500 cd/m² |
| Working Temp | -20°C~70°C | -20°C~70°C | -20°C~70°C |
| Communication | RSL / CAN / RS485 | RSL / CAN / RS485 | RSL / CAN / RS485 |
| Dimensions | 189×121×22mm | 189×121×22mm | 189×121×22mm |
| Viewing Size | 152×80mm | 212.2×158.4mm | 212.2×158.4mm |
| Resolution | 1024×600 | 1024×768 | 1024×768 |
Installation Dimensions
Designed for straightforward installation with comprehensive documentation support.
For comprehensive installation guides, mounting templates, and precise dimensional drawings, please download our official datasheet. Our engineering team is also available to provide custom installation support.
Functional Features
Six core capabilities that make the Zhuye HOP the smart choice for modern elevator installations.
Real-Time Elevator Status
Displays live elevator operation status and floor selection in real time, keeping passengers informed at all times.
Core Function
Time, Date & Week Display
The interface shows current time, date, and day of the week, providing a complete information experience for building occupants.
Information
Customizable Video Content
Built-in video function supports fully customizable multimedia content — ideal for announcements, advertising, or branding.
Multimedia
Alarm & Safety Alerts
Instantly displays critical alarm notifications including fire warnings, overload alerts, and no-smoking reminders to enhance safety.
Safety
Language & Interface Switching
Supports multiple languages and interface style switching, making it adaptable to diverse regional and project-specific requirements.
Localization
Three Size Options
Available in 7″, 10.4″, and 12.1″ screen sizes to suit various installation environments and architectural preferences.
Flexibility
Application Scenarios
Trusted across diverse building types for reliable, modern elevator communication.
Residential Buildings
Enhancing user experience with clear floor indications and multimedia content for residents.
Commercial Complexes
Providing vital information and emergency alerts in high-traffic commercial environments.
Hospitals
Displaying critical information and ensuring smooth patient and visitor flow throughout the facility.
Hotels
Offering a modern aesthetic and informative display that enhances the guest experience.
Office Buildings
Improving efficiency with real-time elevator status and corporate messaging for employees and visitors.
Frequently Asked Questions
Everything you need to know about the Zhuye Picture/Multi-Media HOP display.
A Picture/Multi-Media HOP is an advanced elevator hall display unit that provides real-time elevator status, floor information, and multimedia content. It enhances user experience and communication in various building types.
The Zhuye Picture/Multi-Media HOP is available in three standard sizes: 7-inch, 10.4-inch, and 12.1-inch, catering to diverse installation requirements and visual preferences.
Our Picture/Multi-Media HOP supports multiple communication protocols including RSL, CAN, and RS485, ensuring seamless integration with various elevator control systems.
Yes, the video function allows for fully customizable video content, enabling building managers to display important announcements, advertisements, or engaging multimedia to passengers.
The display can show various alarm notifications such as fire alarms, overload warnings, and no smoking reminders, contributing to enhanced safety and operational awareness within the elevator system.
Ready to Upgrade Your Elevator Displays?
Contact Nanjing Zhuye Elevator Parts Co., Ltd. today for a custom quote and discover how our Picture/Multi-Media HOP displays can transform your building’s elevator experience.
